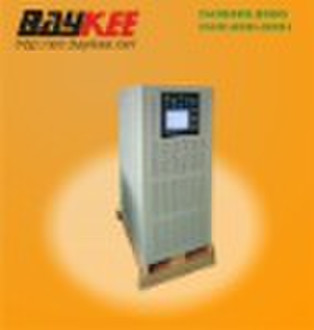

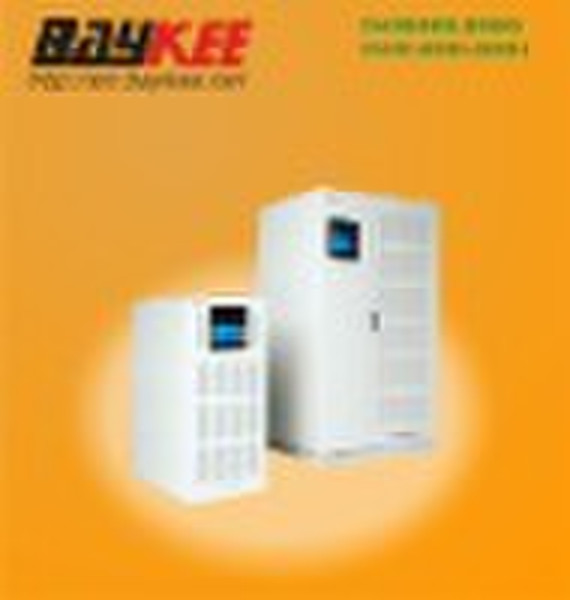

Three phase UPS (MTT series 10K-120K)

No.MTT-10KMTT-20KMTT-30KMTT-40KMTT-60KMTT-80KMTT-100KMTT-120KMTT-150KMTT-200KMTT-300KMTT-400KWork principlePure sine wave on linePhase3phase+N+GPF>0.9, >0.95(with filter)RectifierInput vol220/380VAC, 230/400VAC, 240/415VACRange±25%Input freq50Hz±10%, 60Hz±10%Output ripple<2%Soft start0 100% 5secChargeCharge modeconstant current to constant vol, with temp compensation; with Auto changeFloat vol432VDCBoost vol464VDCTemp compensation vol3mv/C(monomer)Charge current0.1CCharge power20% of Rated capacityBatteryBattery Type maintenance-free lead acid batteryBattery capacity7 999AH settableBattery number32pcs 12V or 192pcs 2VInverterPhase3phase+NRated powerRated capacity *0.8Nominal vol220/380VAC, 230/400VAC, 240/415VACOutput vol stability±1%Output frequency stability50Hz/60Hz<±0. 5%Crest factor> 3:1Output waveform distortionSine wave ,linear load<3%;non-linear load<5%Dynamic characteristicsInstant vol<±5%Unbalanced load vol<±5%Overload Protection125%10 msEfficiency>95%Bypass Phase3phase+NNominal vol220/380VAC,230/400VAC,240/415VACTransfer time<1mSProtectionInput protectionInput vol/frequency over limited ;wrong phase; lack phase protectionOutput protectionOver current; short circuitBattery protectionOver charge protectTemperature protectionEnvironment over temp, inverter over temp protectionHardware failure protection Assistant power abnormal protectionSystem ParametersWorking environmentTemp: 0 40 C, relative humidity 30% 90 %Cooling downCOMPULSIVE VENTILATION(with temperature control)Communication InterfaceRS232, RS485; optional SNMPRedundancy functionTandem hot backup or parallel connectionAnti-surge capacity10/700μS,5KV ;8/20μS,20KAProtection levelIP21Safety performanceVin-n Vout-n 3000Vac, creepage<3.5mA , insulating resistance>2MΩ(500VDC)Noise (dB)48 5555 6060 6565 70Dimension(W*D*H)mm430*750*1080480*895*1200980*800*18001380*950*18001600*1150*1800Weight(Kg)200350400480580 850 920 105012001300152018301980
